AirSAR Case Study

Aerospace Resources Ltd (ARL), working in partnership with Oil Spill Response Limited (OSRL), the British Antarctic Survey (BAS), Disaster Monitoring Constellation international imaging Ltd (DMCii), Surrey Space Centre (SSC) and the Satellite Applications Catapult, secured use of the NERC airborne trials aircraft for the purpose of conducting an oil on water exercise in June 2014.

The S-band data from the NovaSAR satellite will complement a service delivery from Aerospace Resources which encompasses access to existing radar satellite missions, optical imagery, AIS data and value added services.

In order to provide data relating to the performance of S-band radar, ARL organised a live oil on water exercise in British waters.

The overall objective of the exercise was to provide S-band radar data to detect oil spills at sea.

In addition to this, the exercise provided an excellent opportunity to make comparisons between C, S and X band radar and also to gather complementary and ancillary data.

All of the data was gathered with ground truth and known environmental conditions.

The exercise was organised by ARL who, arranged the necessary authorisations from UK government authorities and bore the legal responsibility for the exercise.

The exercise was conducted in the English Channel at 50°32'48.00"N, 1°32'27.00"W, approximately 9 miles South West of the Isle of Wight, as shown below.

Offshore Assets

OSRL operated 3 vessels in the exercise, along with a number of smaller supporting offshore assets and sensors.

  • Lead Vessel: EARL II
  • Support Vessel 1: Wynforce
  • Support Vessel 2: Tiger Shark
  • Additional offshore assets:
    • Maritime Robotics Aerostat, 'OceanEye'
    • OSRL Fluorometry Team
    • Tracking Buoy

Airborne Assets

The following aircraft took part in the exercise:

  • NERC/BAS Twin Otter
  • OSRL Dornier 228

S and X band radar data

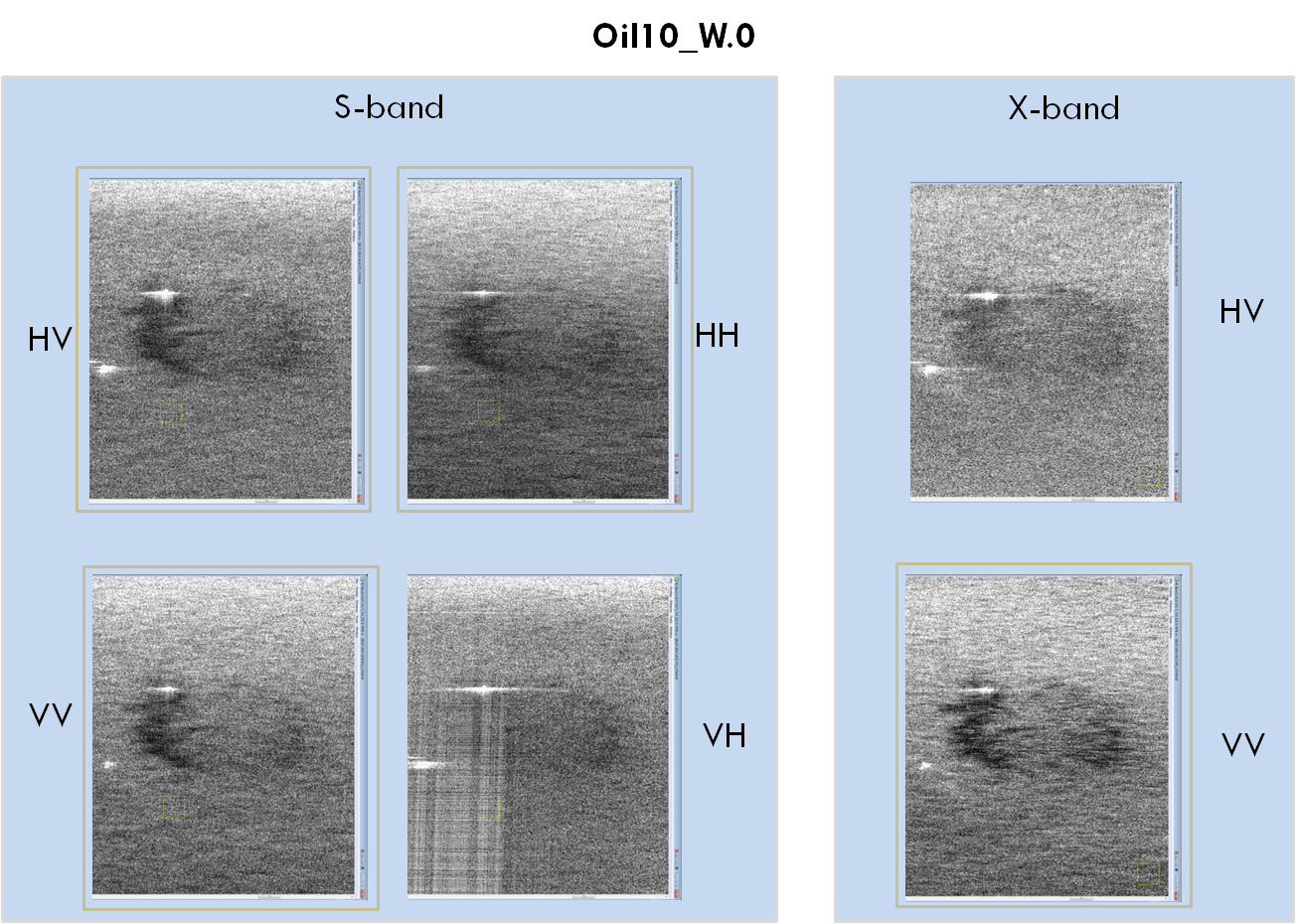

The S and X band demonstrator produced some excellent data for analysis and highlighted the ability of both frequencies to identify oil in water. An example of which can be seen in example "Oil10_W.0" below:

Both oil types are visible here, in all of the polarisations, however they are most clear and distinct in HV polarisation for the S-band and VV for the X-band.

Summary findings from the data

AirSAR (S and X band) data demonstrated clear returns of oil across the timeline of the exercise. The distinction of oil from water is possible visually and also through classification and analysis techniques.

Both oil slicks can be identified and characterised but crude oil proved easier to detect than diesel in later stages of the exercise.

With the C-band data from RadarSat-2, co-polarisation proved better than cross-polarisation for oil detection during the exercise.

The conditions for the exercise largely fell within the parameters that allow for detection of oil on water using radar sensors.

The ground truth data and ancillary data have provided an excellent basis for analysis.

There is potential to carry out further analysis depending on customer requirements, some areas of potential interest are highlighted in the following section.
